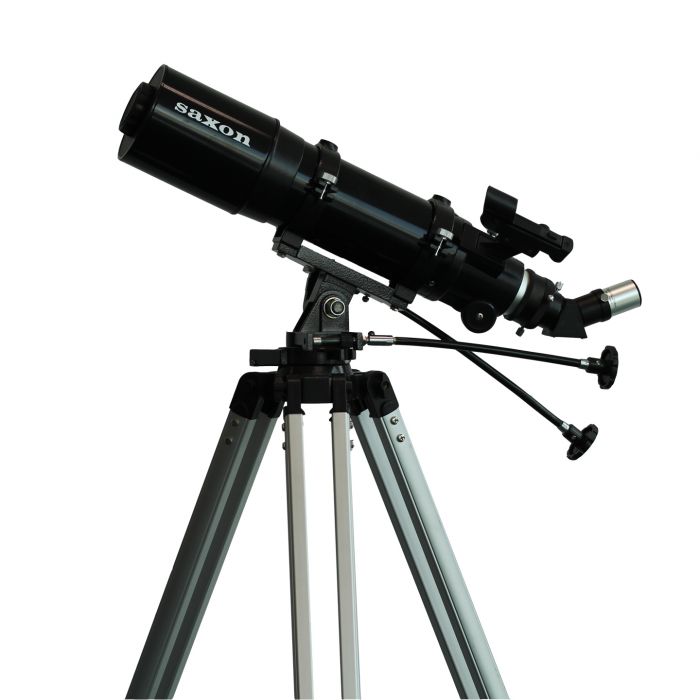

saxon 1025AZ3 Pioneer Refractor Telescope

In stock
RRP: $749.95
100% of 100

For observations of both land and sky, you can count on the saxon 102/500 AZ3 Pioneer Refractor Telescope to do the job.

This short-tube telescope comes with 102mm multi-coated achromatic objective lens and a focal length of 500mm. You'll get a host of accessories to complement your viewing session - quality Plossl eyepieces, a red-dot finderscope and an erecting prism for terrestrial viewing. The scope also comes with a sturdy Alt-Azimuth mount which you can manoeuvre up and down and left to right.

No heavy lifting required in transporting the saxon 1025AZ3 Pioneer Refractor Telescope around - the full assembly weighs just over 6 kg!

The saxon 102/500 AZ3 Pioneer Refractor Telescope is the perfect choice of telescope for anyone who wants the ability to study both the night sky and the world around them.

This telescope's aperture of 102mm and focal length of 500mm provides sharp, clear images without the need to constantly adjust your scope. When you're not observing wildlife or landscape from afar, the inclusive accessories will pave the way for you to immerse yourself with views of the Moon and planets. Budding astrophotographers will appreciate the scope's short focal length which aids in capturing images of deep sky objects.

The compact and portable saxon 1025AZ3 Pioneer Refractor Telescope features the following:

  • 102mm aperture
  • 500mm focal length
  • 1.25" Plossl eyepieces
  • Red-dot finderscope
  • 45 degree erecting prism
  • Alt-Azimuth AZ3 mount
  • Aluminium tripod with accessory tray
  • Photography is possible via an optional T-2 adapter ring.

Perfect for use by observers of all levels.

More Information
Custom Stock Status In Stock
Warranty Information 5-Years Limited Warranty
Optical Design Refractor
Aperture 102mm
Highest Practical Power 204x
Focal Length 500mm
Focal Ratio F/4.9
Eyepieces Plossl 25 and Plossl 10
Finderscope Red-dot
Barlow Lens No
Diagonal 1.25" 45° Erect Image Diagonal
Mount Type Alt-Azimuth
Tripod Aluminium
Optical Tube Dimensions 10 x 47cm
Optical Tube Weight 2.53kg
Shipping Dimensions 95 x 44 x 23cm3
Shipping Weight 10.5kg
File Downloads
(Size: 193.1 KB)
* You have to Login or Register to download this file

saxon 10mm/25mm 1.25’’ Plossl Eyepiece(Silver)

Featuring a 4-element design, this Plossl eyepiece ensures maximum light transition, minimises spherical aberration, distortion, astigmatism and off-axis colour. The edge-to-edge blackened optics provides excellent contrast across the 50° apparent field of view.


saxon Red-dot Finderscope with bracket

It is a zero magnification pointing tool that uses a coated glass window to superimpose the image of a small red dot onto the night sky, showing where the telescope is pointed.


saxon 1.25’’ Erect Image Diagonal (45 degree)

It can give you a comfortable viewing angle and an upright, non-mirrored image when you need your telescope is a horizontal position.


saxon AZ3 Mount with Tripod

It is an aluminium tripod with dual axis slow-motion controls


Star/ Moon Chart

The star chart shows the solar system of which earth is a member planet and the moon chart clearly shows the topography of the lunar surface.
