saxon 6" DeepSky Dobsonian Telescope

In stock
SKU
239106
RRP: $569.95
Rating:
93% of 100

The saxon 6" DeepSky Dobsonian (153/1200) Telescope is your pathway to the night skies!

This telescope comes with a light-grabbing aperture of 153mm and a focal length of 1200mm - perfect for viewing the Moon upclose as well as bright deep sky objects. This scope comes with quality parts and accessories - the rack and pinion focuser allows precise focusing of your object while the included eyepieces and finderscope means you'll be ready for your observing session once your scope is assembled.

The easy to use and affordable saxon 6" DeepSky Dobsonian Telescope is perfect for the amateur astronomer and serious beginners.

WHERE TO BUY?

Optics Central BinoCentral
Sidereal Trading

The saxon 6" DeepSky Dobsonian (153/1200) Telescope is the perfect partner to begin your astronomy adventure with. This affordable telescope comes with a "paraboloidal" primary mirror to eliminate spherical aberration and a four-arm, secondary-mirror bracket with fine supports (0.5mm thick) to reduce diffraction spikes and light loss.

This telescope comes with an aperture of 153mm and a focal length of 1200mm in a 6" tube. This scope features quality parts and accesories - the special roller-bearing construction, rack and pinion focuser, eyepieces and finderscope are all designed to aid with your observing experience. Once assembled and with a little practice, you'll soon be able to find and view the rocky surfaces of the Moon, planets in the Solar System as well as deep sky objects such as star clusters, double stars, nebulae and galaxies.

The saxon 6" DeepSky Dobsonian Telescope requires no additional tools during assembly and is incredibly easy to use, making it the perfect scope for beginner astronomers.

The DeepSky Dobsonian Telescopes series comes in four sizes - 6", 8"10" and 12".

What is Dobsonian Telescope and Why the Tension Control Handle?
A simple, elegant form of an alt-azimuth mount made to carry a Newtonian reflector was popularized by John Dobson in the late 1970's. The Dobsonian mounted telescope is popular among amateur astronomers and telescope makers because of its simplicity. In its simplest form, the Dobsonian mount consists of a box which allows the optical tube assembly to pivot in altitude, while the box itself is swivelled on a base in azimuth.

The Dobsonian mount usually relies on the friction between the side bearings on the optical tube of the telescope and a frictional material on the saddle to hold the optical tube in place. If there is too much friction, the telescope is difficult to move to center an object in the filed of view. If there is too little friction, the telescope will not sty where it is positioned. This makes stabilizing the optical tube of the telescope difficult when using a Dobsonian mount, especially when accessories, such as a finderscope or an eyepiece, are added to the optical tube. As long as the amount of friction is at an appropriate level, and therefore stabilization of the optical tube is achieved, the telescope can remain in its desired position to view an object and maintain its position even when the mount is rotated.

The devices for stabilizing a telescope on the Dobsonian mount currently available include: a sliceable weight to counter balance the weight of the telescope, a friction lock that must be adjusted to inhibit movement of the telescope, and a spring attached between the telescope tube and mount to aid in stabilization.

These devices are inconvenient to use because they do not provide a simple and user-friendly way to adjust the friction. The objective of the saxon Tension Control Handle invention is to provide a tension adjuster that users can easily turn to add or reduce tension, thereby increasing or decreasing the friction between the optical tube and the sideboard of the mount.

By providing such a tension adjuster, the telescope does not need to be balanced in order to stay in position. The tension adjuster can be tightened such that the optical tube can stay in a position but can still be moved when prompted to adjust the position of the optical tube. Alternatively, the tension adjuster can be completely tightened to lock the optical tube in position.

More Information
Custom Stock Status In Stock
Warranty Information 5-Years Limited Warranty
Optical Design Newtonian (Parabolic)
Aperture 153mm
Highest Practical Power 306x
Focal Length 1200mm
Focal Ratio F/7.8
Eyepieces Plossl 25 and Plossl 10
Finderscope 6x30
Barlow Lens No
Diagonal No
Mount Type Dobsonian Alt-Azimuth
Tripod No
Optical Tube Weight 5.78kg
Shipping Dimensions Tube: 125 x 38 x 34cm3, Base: 76 x 67 x 11cm3
Shipping Weight Tube: 9kg, Base: 13kg
File Downloads
pdf
(Size: 2.5 MB)
saxon 6" DeepSky Dobsonian Telescope Instruction Manual 239106
* You have to Login or Register to download this file
-

saxon 10mm/25mm 1.25’’ Plossl Eyepiece(Silver)

Featuring a 4-element design, this Plossl eyepiece ensures maximum light transition, minimises spherical aberration, distortion, astigmatism and off-axis colour. The edge-to-edge blackened optics provides excellent contrast across the 50° apparent field of view.

-

saxon 6x30 Finderscope with bracket

The 30mm aperture gives a brighter and sharper image, while 6x magnification lets you centre in on your targets while still providing a good field of view. Lock on to your targets with the cross-hair reticle and observe away.

-

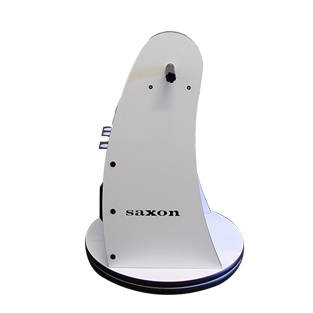

Dobsonian Alt-Azimuth

This kind of mount requires no additional tools during assembly and is incredibly easy to use, making it the perfect scope for beginner astronomers.

-

Star/ Moon Chart

The star chart shows the solar system of which earth is a member planet and the moon chart clearly shows the topography of the lunar surface.
