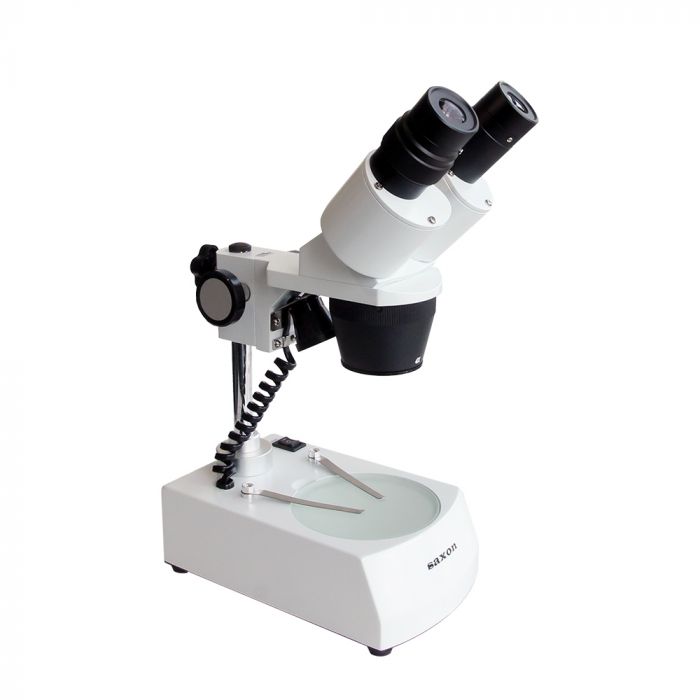

saxon PSB X2-4 Deluxe Stereo Microscope 20x-40x

In stock
SKU
312007
RRP: $449.95

The saxon PSB X2-4 Deluxe Stereo Microscope is a good entry-level stereo microscope that's ideal for researchers of all ages.

This microscope comes with two magnifications of 20x and 40x, a 45-degree inclined binocular head and two illumination points to bring out the finer details of your object.

Housed in a rugged metal case, you can be sure of the durability and quality of this microscope.

The metal bodied saxon PSB X2-4 Deluxe Stereo Microscope features a 20x & 40x magnification, a working distance of 76mm and ac powered illumination. This dual magnification microscope is suitable for collectors, hobbyists, students or teachers who wish to study and observe three-dimensional objects.

This microscope head is height adjustable and easy to shift to obtain different viewing angles. A 360 degree rotation can also be rotated to suit individual viewing preferences. Top and bottom illumination are available and the staging plates can be easily changed.

Whether it is used for schools, gemmology, geology, studying circuit boards and plants, this microscope is a great starting point. The metal clips on the stage keep your slides and subjects in place for easier viewing.

For added versatility or optical enhancement, the eyepieces can be removed and replaced with a suitable alternative.

Available eyepiece:
WF16x

More Information
Custom Stock Status In Stock
Warranty Information 3-Years Limited Warranty
Eyepiece WF 10x
Magnification Range 20x, 40x
Objectives 2x, 4x
Field of View 20mm
Working Distance 76mm
Illumination LED reflected & transmitted
Head Type Binocular
Focus Coarse
Condenser N/A
Stage Type Black/White Contrast Plate, Frosted Glass
Stand Pillar
Power Supply 5v 1000mA AC Power or 3x AA Batteries
Weight ± 1.9kg
File Downloads
pdf
(Size: 1.4 MB)
* You have to Login or Register to download this file
-

saxon WF10x Eyepiece

This is a brand new widefield WF10X microscope eyepiece. It fits most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost.

Saxon Rubber Eyecups

Flexible rubber eyecups can reduce ambient light and glare reflections, thus protecting your dark adaptation, while providing the viewer with comfort for maximum visual effectiveness. Eyecups assure proper eye-to-lens positioning and also protect the optical surface from grime and oil.

-

Black/White Contrast Plate

It is a black and white plastic stage plate for additional contrast while viewing specimens.

-

saxon Adapter

The adapter can support AC powered of this microscope.

-

saxon Glass Stage Plate



-

saxon Dust Cover

Clear, vinyl dust covers for the protection of your microscopes.

Images below were taken with saxon PSB X2-4 Deluxe Stereo Microscope 20x-40x coupled with saxon ScopePix Smartphone Adapter.

Watch disk Watch disk Watch disk Watch disk

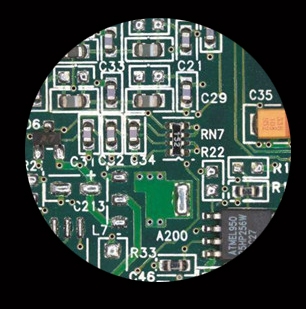

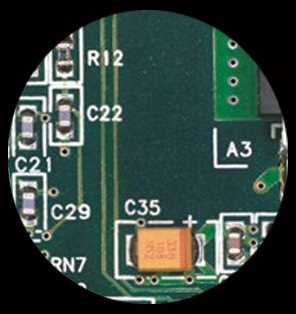

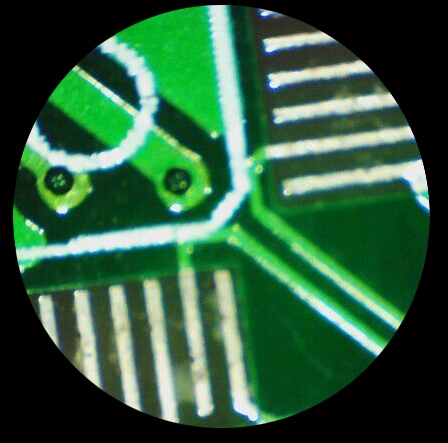

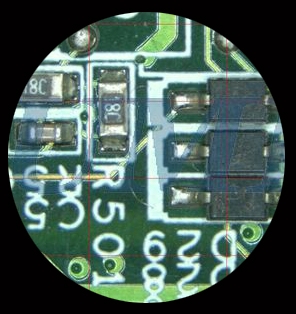

Circuit board @40x
Circuit board @40x
Circuit board @40x
Circuit board @40x

Circuit board Circuit board Circuit board Circuit board

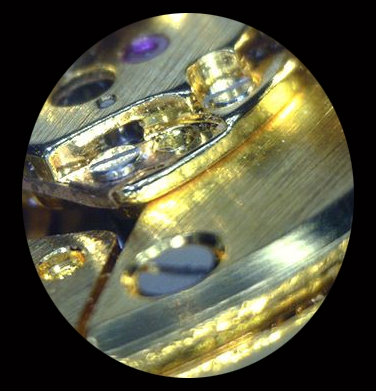

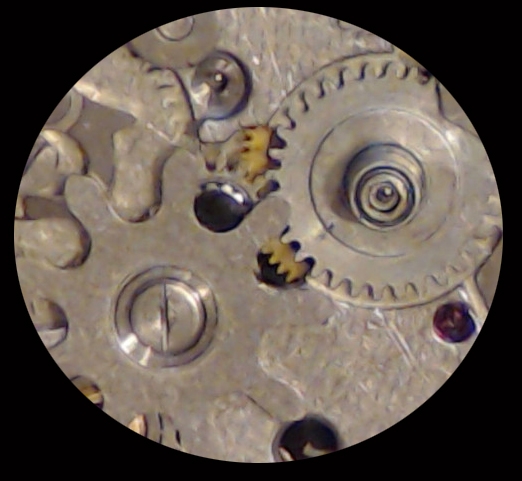

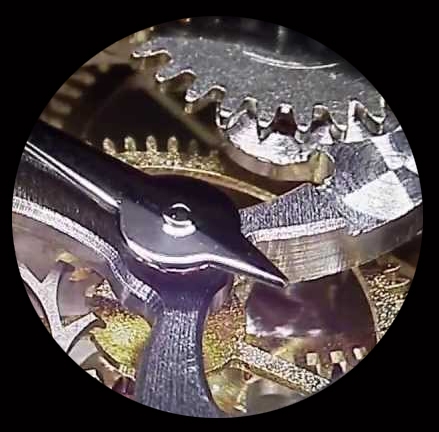

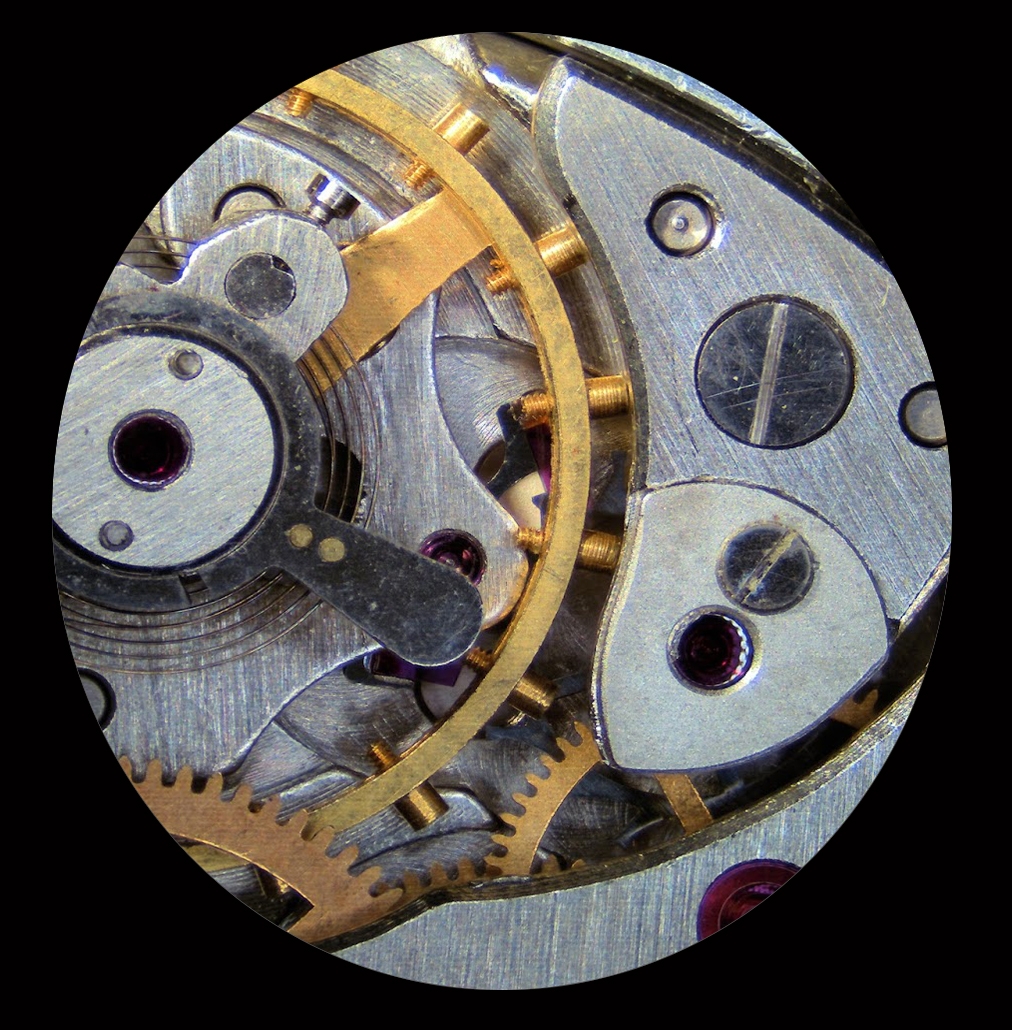

Watch disk @40x
Watch disk @40x
Watch disk @40x
Watch disk @40x
