saxon 3 Megapixel Digital Microscope Camera

In stock
SKU
310403
RRP: $376.95

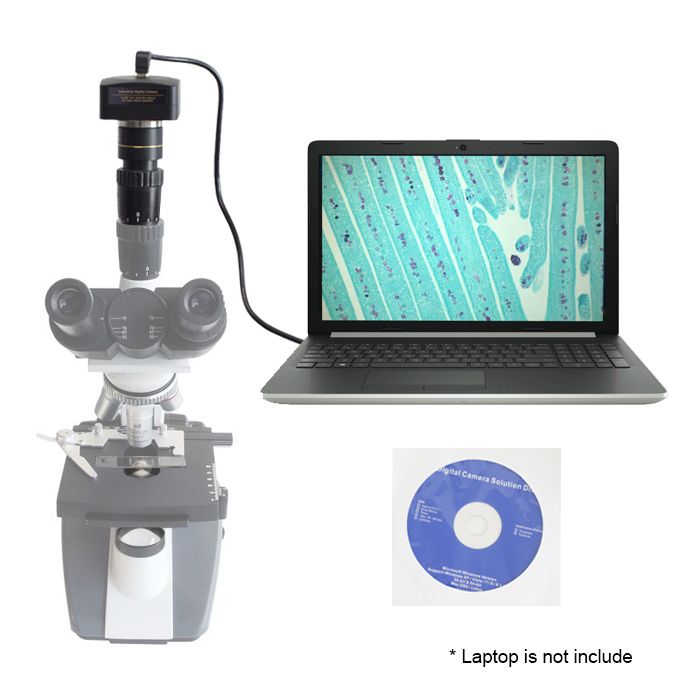

Step into the world of microscope photography with the saxon 3 Megapixel Digital Microscope Camera. This camera fits on microscopes of any size thanks to the included 30mm and 30.5mm adapter tubes. Snap pictures or record videos of specimens, observations, and manipulation.

Specifications:

  • Sensor size: 2048x1536 (Approx 3.2 Megapixels)
  • CMOS sensor size: 1/2" (6.5mm x 4.92mm)
  • Frames per second: 43fps@680x510, 22fps@1024x768, 8fps@2048x1536
  • Responsivity: 1.0V/lux-sec (550nm)
  • Dynamic range: 61dB
  • SN Ratio: 43dB

Hardware Specifications

Image Pickup Device Aptina Mt9T001 CMOS (Colour)
Scan Mode Progressive
Max. Resolution 2048 x 1536 (Approx. 3,200,000 pixels)
Sensor Size 1/2" (6.55mm(H)x4.92mm(V), Diagonal 8.19mm)
Pixel Size 3.2μm x 3.2μm
G Sensitivity 1.0V/lux-sec (550nm)
Dynamic Range 61dB
A/D Converter 10-bit, 8-bit RGB to PC
SN Ratio 43dB
Spectral Range 380-560nm (with IR-filter)
Video Format and Frame Rate 8fps@2048x1536, 22fps@1024x768, 43fps@680x510
Binning 1x1, 2x2, 3x3
Exposure 0.128ms~2000ms, ROI Auto & Manual
White Balance ROI White Balance/Manual Temp-Tint Adjustment
Colour Rendering Technique Ultra Fine Colour Engine
Peak Quantum Efficiency 35%
Radout Noise N/A
Extinction Ratio N/A
Smear N/A
Capture/Control API Native C/C++ SDK, DirectShow, Twain
Recording System Still Picture, Movie

Optimum Operating Range

Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port

Software Requirements

Operating System

Microsoft Windows 7/8/10
Mac OS X
Linux

PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher
Memory: 2GB or more
USB Port: USB2.0 High-speed port
Display: 17" or larger
CD drive for installation
More Information
Eyepiece N/A
Magnification Range N/A
Objectives N/A
Illumination N/A
Head Type N/A
Focus N/A
Condenser N/A
Stage Type N/A
Stand N/A
File Downloads
pdf
(Size: 1.1 MB)
* You have to Login or Register to download this file

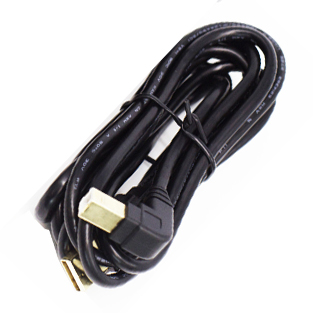

saxon USB Cable

It can be used to connect with computer.

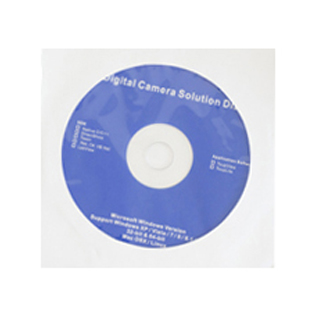

saxon Digital Camera Solution Disk

The user-friendly software is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux.

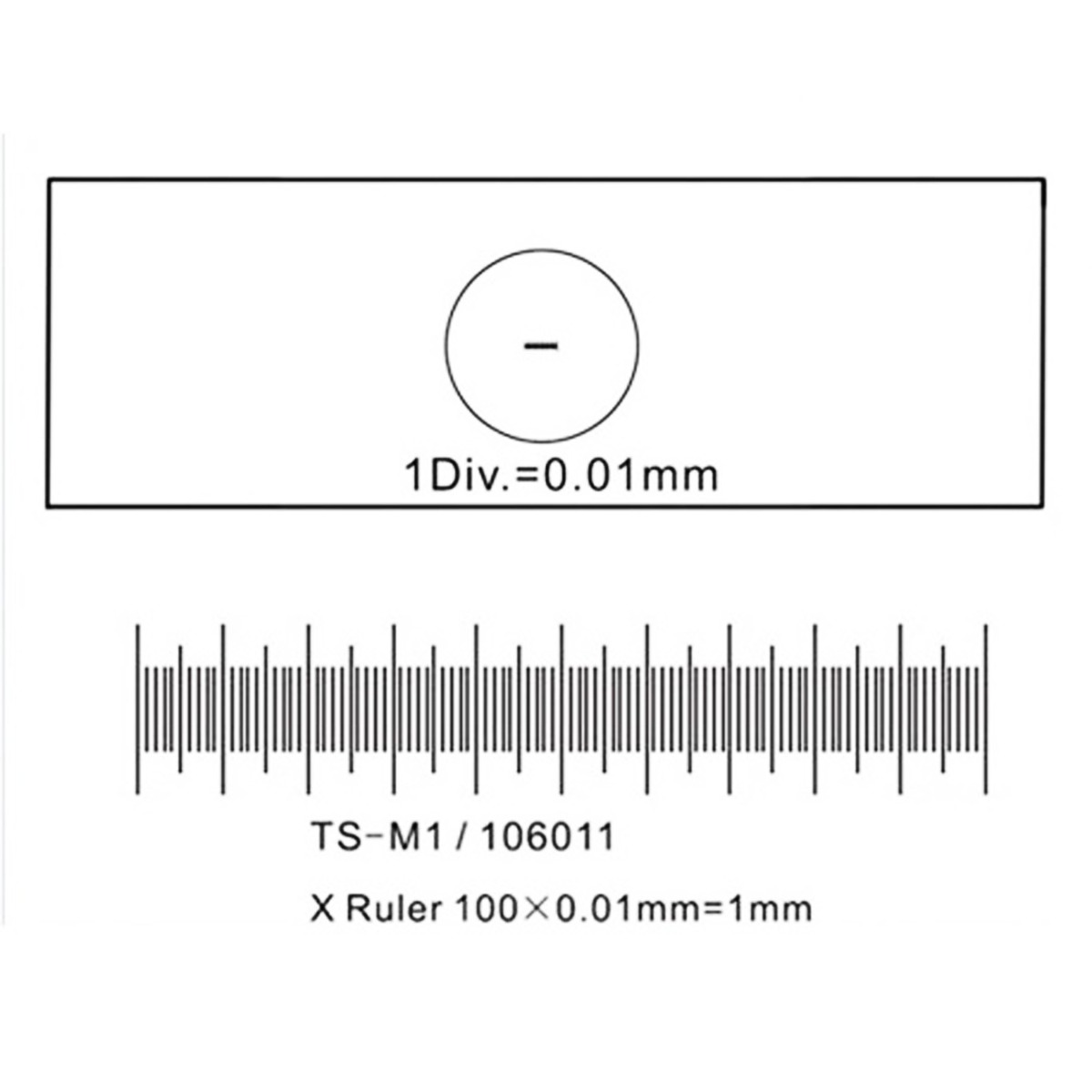

 saxon Micrometer Slides

It can be used to measure the objects and adjust the field of view.

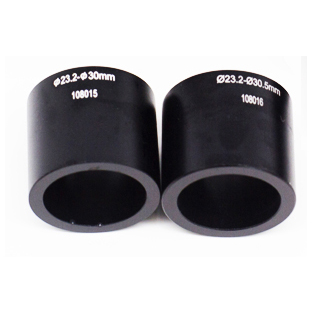

 saxon Adapter

It fits the mounting size is 30mm and 30.5mm.
