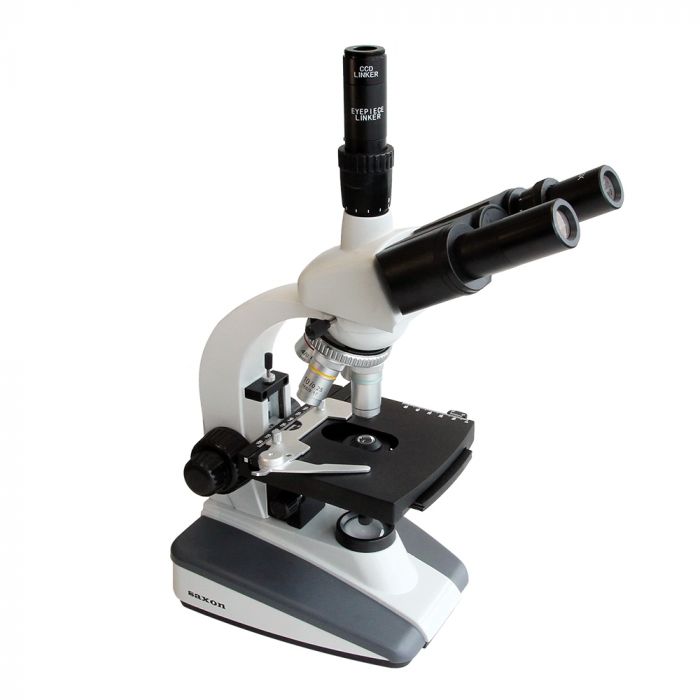

saxon Researcher Compact Biological Microscope 40x-1600x

In stock
SKU
311008
RRP: $999.95
Rating:
100% of 100

If you spend a great deal of time on biological research for academic or lab analysis, the saxon researcher compact biological microscope is the one to go for.

Featuring a trinocular head with digital imaging capability, you can take photos or videos of specimens with the additional digital eyepiece that is connected to the computer. The magnification rotates between 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x giving you a wide range of observation.

The coaxial coarse and fine focus aids in sharpening the smallest details which can take your observation to the next level. Not forgetting the mechanical stage that boast an x-y linear to slide the specimen in place, and locater markings for tracing specimens.

Powered by AC or batteries, the saxon researcher compact biological microscope can used indoors or outdoors.

This microscope promises versatility and durability for use at work, school or home.

Include:
Filter lens (green, blue and yellow)

Immersion oil

More Information
Custom Stock Status In Stock
Warranty Information 3-Years Limited Warranty
Eyepiece WF10x, WF16x
Magnification Range 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x
Objectives 4x, 10x, 40xR, 100xR
Field of View 18mm & 13mm
Illumination LED
Head Type Trinocular
Focus Coarse and Fine
Condenser 1.25 Abbe
Stage Type Mechanical Stage 130mmx125mm
Stand Curved Arm
Power Supply 5v 1000mA AC Power or pre-installed recharge-able Batteries
Weight 3.7
File Downloads
pdf
(Size: 1.6 MB)
* You have to Login or Register to download this file
-

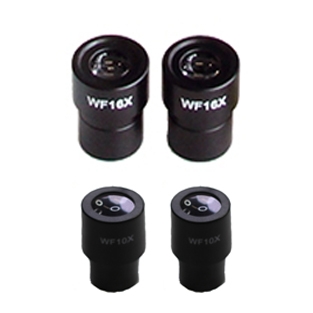

saxon WF10x, WF16x Eyepiece

These are brand new widefield WF10X and WF16X microscope eyepieces. They fit most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost.

-

Filter lens (green, blue and yellow)

Microscope filters are used for both observation and photo microscopy. Green Filter can improve with the use of a green filter. Phase contrast objectives are also created to give the best phase images in green light. Blue Filter can provide a pale gray-blue hue to the field of view and is often used to balance the light created by tungsten or halogen microscope lights to balance out the colour of the microscopy light. Yellow filter is used to fine-tune the colour balance of tungsten and halogen microscope light sources for photomicrography with colour film.

-

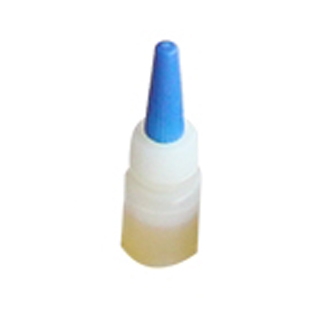

Immersion oil

It can improve microscope resolution and magnification power by providing better connection between the observed sample and the lens. The oil is safe for the optics. It is easily removed without leaving any residue.

-

saxon CCD Linker

It's a microscope adapter for a C-mount-Camera.

-

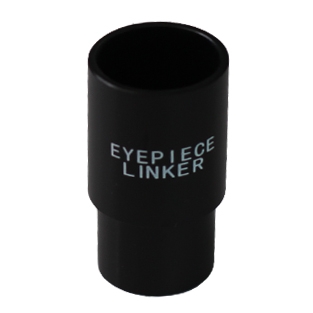

saxon Eyepiece Linker

It can be used to connect eyepieces

-

saxon adapter

The adapter can support AC powered of this microscope

-

saxon Cover

Clear, vinyl dust covers for the protection of your microscopes.

Images below were taken with saxon Researcher Compact Biological Microscope 40x-1600x coupled with saxon ScopePix Smartphone Adapter.

Epidermis W.M #1 - 40x magnification Epidermis W.M #1 - 100x magnification Epidermis W.M #1 - 400x magnification Frog Epidermal
Epidermis
@40x
by - < saxon team >
Epidermis
@100x
by - < saxon team >
Epidermis
@400x
by - < saxon team >
Frog Epidermal
@40x
by - < saxon team >

Garlic Skin - 40x magnification Garlic Skin - 100x magnification Garlic Skin - 400x magnification Frog Epidermal
Garlic Skin
@40x
by - < saxon team >
Garlic Skin
@100x
by - < saxon team >
Garlic Skin
@400x
by - < saxon team >
Frog Epidermal
@100x
by - < saxon team >
