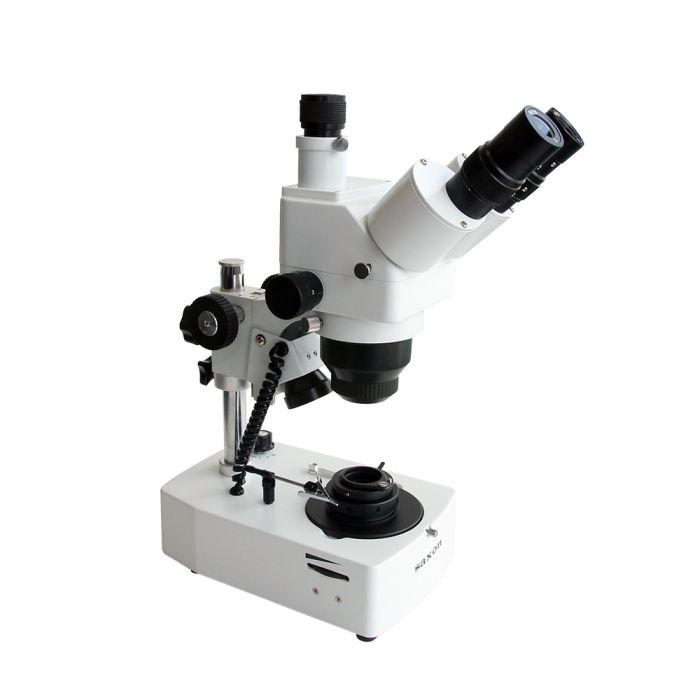

saxon GSM Gemological Microscope 10x-80x

In stock
SKU
314210
RRP: $1,229.00

The saxon GSM Gemological Microscope 10x-80x is powerful microscope to study small stones and gemstones.

This microscope features a zoom lens which allows you to zoom in and out from the object effortlessly with just a twist of a knob. For lighting options, the transmitted and refelected light can be turned on together or on its own, giving you more room to inspect the surface details and structures of the object.

Use the gem tweezer to help hold your stone in place while you focus until image is clear. If you want to observe the stone at a different angle, simply rotate the tweezer until the angle comes in view.

Easy to use and powered by the supplied AC adapter, this is an ideal microscope for hobbyist and gemologist.

If you need a powerful microscope for the study of gems and stones, the saxon GSM Gemological Microscope 10x-80x can go up to 80x magnification.

More Information
Custom Stock Status Backorder
Warranty Information 3-Years Limited Warranty
Eyepiece WF 10x, WF 20x
Magnification Range 10x - 80x
Objectives 1x - 4x
Field of View 5.5mm - 23mm
Working Distance 85mm
Illumination LED
Head Type Trinocular
Focus Coarse
Condenser Darkfield and Light field
Stage Type Black/White Contrast Plate, Frosted Glass
Stand Pillar
Power Supply 4.2v 1500mA AC Power
Weight ± 4.25kg
File Downloads
pdf
(Size: 1.4 MB)
* You have to Login or Register to download this file



-

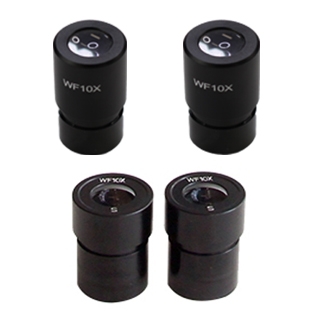

saxon WF10x, 20x Eyepiece

These are brand new widefield WF10X and WF20X microscope eyepieces. They fit most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost

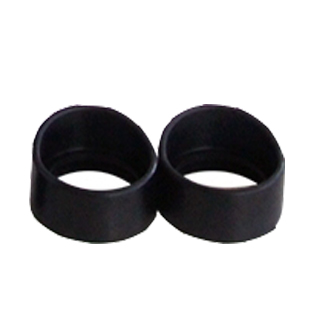

Saxon Rubber Eyecups

Flexible rubber eyecups can reduce ambient light and glare reflections, thus protecting your dark adaptation, while providing the viewer with comfort for maximum visual effectiveness. Eyecups assure proper eye-to-lens positioning and also protect the optical surface from grime and oil.

-

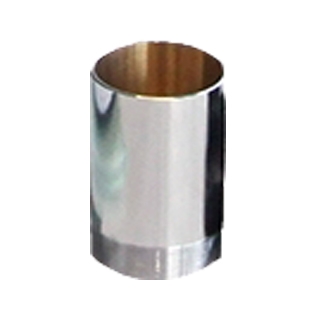

Saxon microscope spacer

It can help the camera adjust the focus so that the image is captured more clearly.

-

saxon Glass Stage Plate

It is a glass stage plate which can allow light to pass while viewing specimens.

-

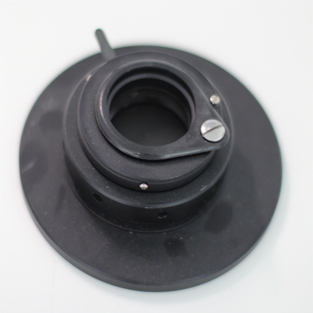

saxon Dark Field

It uses light from the lamp source under the microscope stage to illuminate the specimen.

-

Black/White Contrast Plate

It is a black and white plastic stage plate for additional contrast while viewing specimens.

-

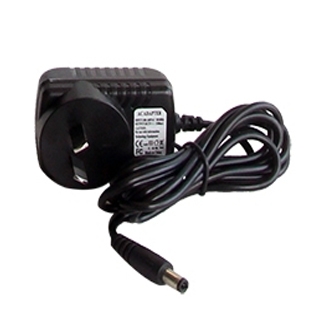

saxon Adapter

The adapter can support AC powered of this microscope.

-

saxon Dust Cover

Clear, vinyl dust covers for the protection of your microscopes.
